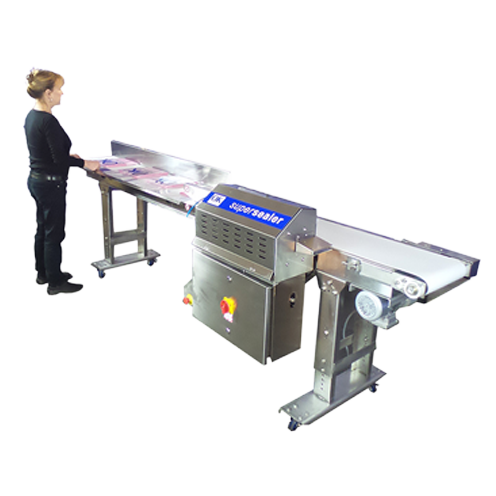

T-PAK 500 Bagging System

T-PAK 500 Bagging System Stainless Steel

OK Sealer offers a variety of semi-automatic bagging systems that offer you a reliable and versatile bag sealing experience. The semi-automatic T-PAK 500 comes equipped with an Supersealer hot air or band sealer, a 10' long flat conveyor, optional T-PAK infeed device, SST Top Trimmer and a Trim Remover.

This Bagging System is assembled to seal any kind of bag material for the food, medical device or staples industry. This system is used in combination with automatic baggers or multi operators on one line. It’s available in painted, stainless steel or wash down configurations.

All the sealers are available in right to left or left to right configurations with various options.

It runs on 110 or 220 volt, and can be plugged into any wall socket.

It is CE marked.

All Bagging Systems
  Brochure  Manual

Features

Benefits
Supersealer Bag Sealer: Superior performance for many years.
Finish: Stainless Steel standard, Powder coating optional.
Speed: Variable to match Supersealer.
Touch Panel Monitor: Operators, Managers, QC personnel can always see all variables of the machine at all times, both set and actual.
Machine Handling: Right to left, or left to right.
Easy Lift Cover: No tool required for band change with easy access.

TECHNICAL SPECIFICATIONS
Bag Size Range: All Bag Sizes.
Speed: Up to 48 ft/min. Other speeds available upon request.
Machine Handing: Right to Left or Left to Right.
Electric Requirements: 110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp CE Marked.
Pneumatic: Not required for standard configuration. Required for optional jet flow trim remover.
Belt Length: 10′ or 3 meters. Other sizes on request.
Belt Width: 16″/406mm or 18″/457mm. Other sizes on request.
PLC Control: Touch Panel.

Add-on Options

  • Bag Top Trimmers
  • Trim Removers 3" (76mm) or 5" (127mm)
  • Automatic Infeed
  • Bag Coders and Printers
  • Conveyors
  • Bag Fillers and Bag Loaders
  • Washdown (IP65 or IP69K) and Corrosive Washdown
