Looking for packaging solutions? Learn more or request a free quote.

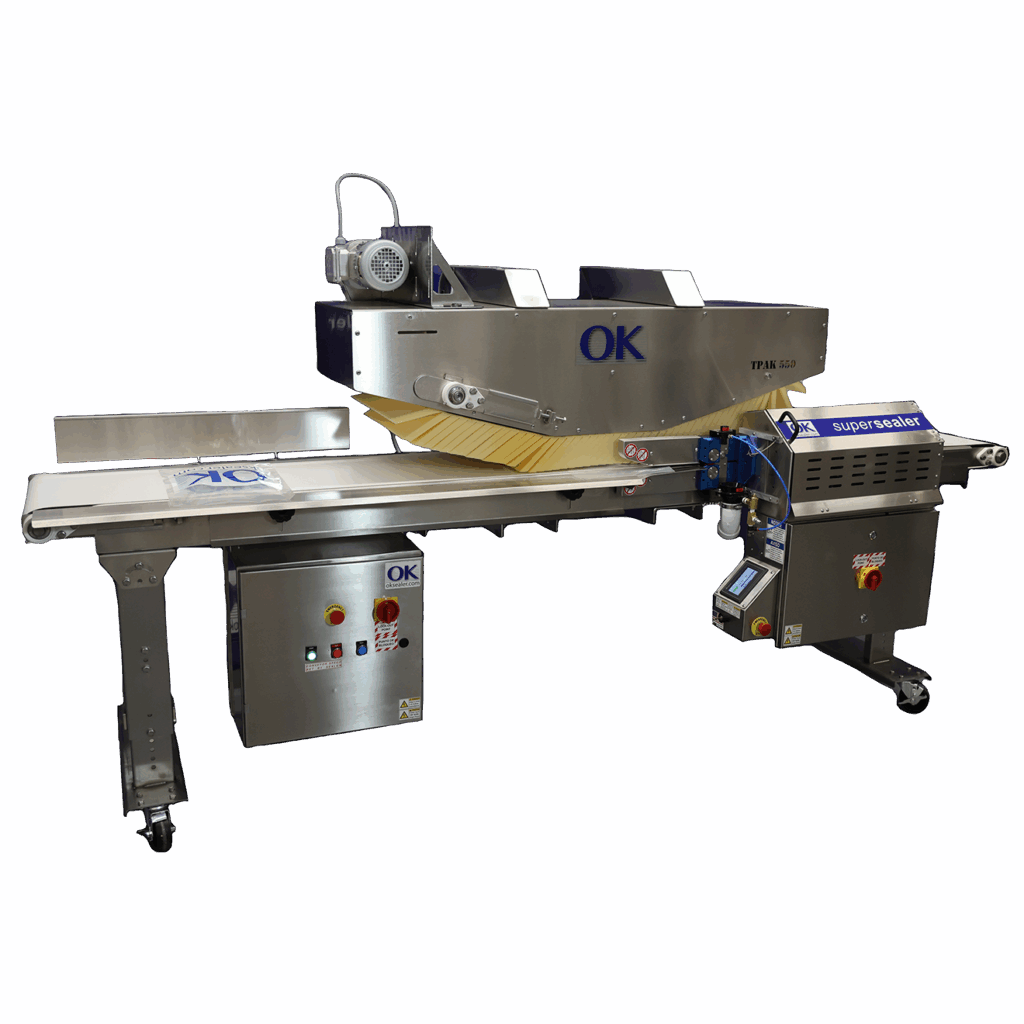

T-PAK 550 Bag Compression
The T-PAK 550 bagging system, is equipped with a flat conveyor and a foam or blue FDA cleat compression belt. The bag with the product comes down the conveyor belt and the foam or cleat compression belt will take the air out of the bag without harming the product. The bag then enters a Supersealer hot air or Supersealer band sealer to get the “perfect seal”. This platform makes this an unchallenged heat-sealing system for many applications, superior in performance and speed with low maintenance cost.
Our satisfied customers include the producers in the scallion/asparagus, produce, bell pepper, poultry, meat, tortilla, bakery and textile industry.
Our T-PAK 550 bagging system is easy to operate and maintain for years of reliable high-quality seals.
All the sealers are available in right to left or left to right configurations and wash down versions with various options.
This Bagging System is assembled to seal any kind of bag material for the food, medical device or staples industry. This system is used in combination with automatic baggers or multi operators on one line. It’s available in painted, stainless steel or wash down configurations.
All the sealers are available in right to left or left to right configurations with various options.
It runs on 110 or 220 volt, and can be plugged into any wall socket.
It is CE marked.
Features | Benefits |
 Supersealer Bag Sealer: | Superior performance for many years. |
| Finish: | Stainless Steel standard, Powder coating optional. |
| Full Compression Belt | Removes excess air from the bags. |
| Automatic Bag Presentation | Optimum seal quality and aesthetics. |
| Touch Panel Monitor: | Operators, Managers, QC personnel can always see all variables of the machine at all times, both set and actual. |
| Modular Design with Individual Frames on Wheels. | Mobility and easy access for maintenance. |
| Machine Handling: | Right to left, or left to right. |
| Easy Lift Cover: | No tool required for band change with easy access. |
TECHNICAL SPECIFICATIONS | |
| Bag Size Range: | All Bag Sizes. |
| Speed: | Variable to match Supersealer. |
| Standard Features: | Product placement on the main conveyor is aided by a back guide and bag top guide. |
| Machine Handing: | Right to Left or Left to Right. |
| Electric Requirements: | 110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp CE Marked. |
| Pneumatic: | Not required for standard configuration. Required for optional jet flow trim remover. |
| Belt Length: | 10′ or 3 meters. Other sizes on request. |
| Belt Width: | 16″/406mm or 18″/457mm. Other sizes on request. |
| PLC Control: | Touch Panel. |
Add-on Options
- Bag Top Trimmers
- Trim Removers 3" (76mm) or 5" (127mm)
- Automatic Infeed
- Bag Coders and Printers
- Conveyors
- Bag Fillers and Bag Loaders
- Washdown (IP65 or IP69K) and Corrosive Washdown
