T-PAK 550-3 Bag Compression

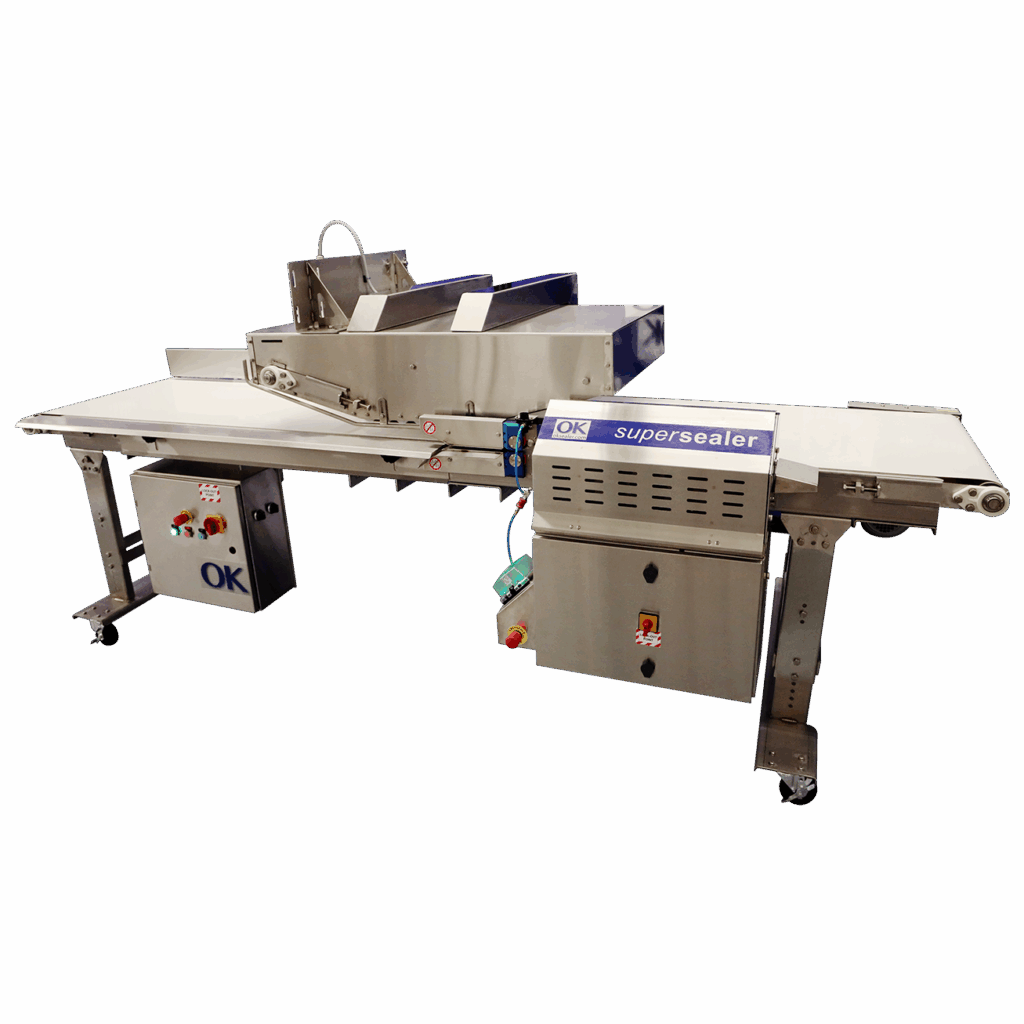

T-PAK 550-3 Bagging System with Bag Compression - Stainless Steel
The T-PAK 550-3 Bag Compression and Sealing System is a high quality system for increasing bag handling and sealing output. The combination of a heavy duty conveyor system with a full width compression belt and a hot air or band Supersealer platform, makes this an unchallenged heat sealing system for many applications, superior in performance and speed with low maintenance cost. Our satisfied customers include the poultry, meat and textile industries.
All the sealers are available in right to left or left to right configurations and wash down versions with various options.
It runs on 110 volt or 220 volt, it can be plugged into any wall socket.
It is CE marked.
Features | Benefits |
 Supersealer Bag Sealer: | Superior performance for many years. |
| Finish: | Stainless Steel standard, Powder coating optional. |
| Full Compression Belt | Removes excess air from the bags. |
| Automatic Bag Presentation | Optimum seal quality and aesthetics. |
| Touch Panel Monitor: | Operators, Managers, QC personnel can always see all variables of the machine at all times, both set and actual. |
| Modular Design with Individual Frames on Wheels. | Mobility and easy access for maintenance. |
| Machine Handling: | Right to left, or left to right. |
| Easy Lift Cover: | No tool required for band change with easy access. |
TECHNICAL SPECIFICATIONS | |
| Bag Size Range: | All Bag Sizes. |
| Speed: | Variable to match Supersealer. |
| Standard Features: | Product placement on the main conveyor is aided by a back guide and bag top guide. |
| Machine Handing: | Right to Left or Left to Right. |
| Electric Requirements: | 110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp CE Marked. |
| Pneumatic: | Not required for standard configuration. Required for optional jet flow trim remover. |
| Belt Length: | 10′ or 3 meters. Other sizes on request. |
| Belt Width: | 16″/406mm or 18″/457mm. Other sizes on request. |
| PLC Control: | Touch Panel. |
Add-on Options
- Bag Top Trimmers
- Trim Removers 3" (76mm) or 5" (127mm)
- Automatic Infeed
- Bag Coders and Printers
- Conveyors
- Bag Fillers and Bag Loaders
