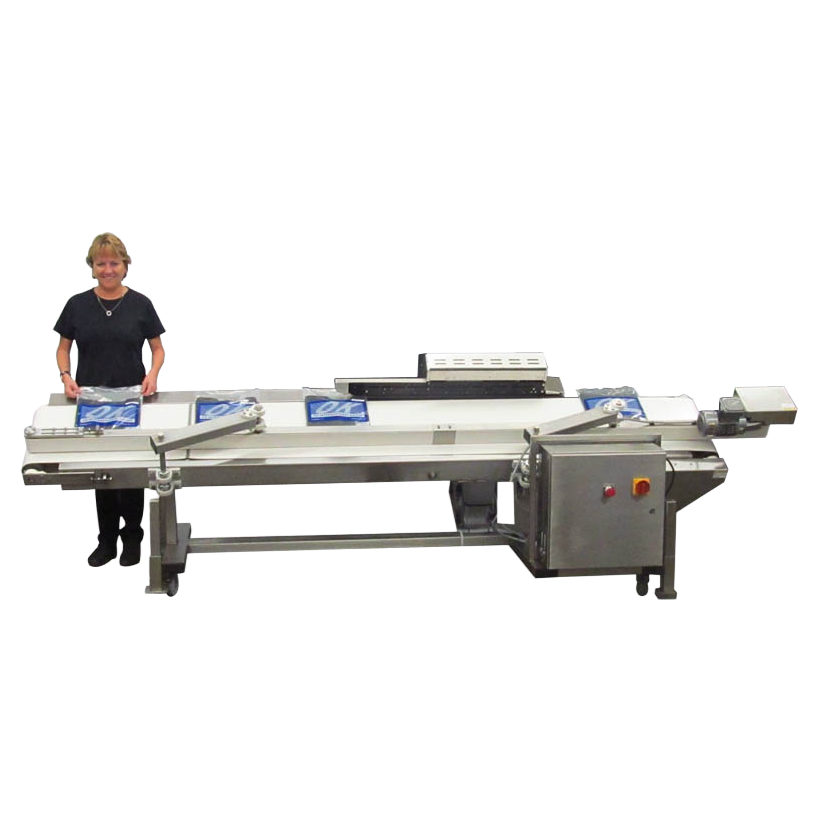

T-PAK 750 Bag Compression
Our T-PAK 750 is our high speed semi-automatic bagging system. It is designed for automatically sealing bags coming down a packing line or off an automatic bagging machine.
The system is equipped with an angled conveyor with powered back belt. The Supersealer hot air or Supersealer band sealer, is mounted to the conveyor and is equipped with a T-PAK infeed device. The T-PAK infeed pulls the bag up to the product. The product then proceeds into the Supersealer and exists with the “Perfect Seal”. Each T-PAK 750 is custom built to meet the need of the customer’s application.
All the sealers are available in right to left or left to right configurations with various options.
It runs on 110 or 220 volt, and can be plugged into any wall socket.
It is CE marked.
Our T-PAK 750 bagging system is easy to operate and maintain for years of reliable high-quality seals.
All the sealers are available in right to left or left to right configurations and wash down versions with various options.
It runs on 110 volt or 220 volt, it can be plugged into any wall socket.
It is CE marked.
Features | Benefits |
 Supersealer Bag Sealer: | Superior performance for many years. |
| Finish: | Stainless Steel standard, Powder coating optional. |
| Full Compression Belt: | Removes excess air from the bags. |
| Automatic Bag Presentation: | Optimum seal quality and aesthetics. |
| Touch Panel Monitor: | Operators, Managers, QC personnel can always see all variables of the machine at all times, both set and actual. |
| Custom Systems: | Systems to meet your application requirements. |
| Minimal Power Requirements: | Low utility consumption. Meets needs for green. |
| Machine Handling: | Right to left, or left to right. |
| Easy Lift Cover: | No tool required for band change with easy access. |
TECHNICAL SPECIFICATIONS | |
| Bag Size Range: | All Bag Sizes. |
| Speed: | Variable to match Supersealer. |
| Standard Features: | Product placement on the main conveyor is aided by a back guide and bag top guide. |
| Machine Handing: | Right to Left or Left to Right. |
| Electric Requirements: | 110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp CE Marked. |
| Pneumatic: | Not required for standard configuration. Required for optional jet flow trim remover. |
| Belt Length: | 10′ or 3 meters. Other sizes on request. |
| Belt Width: | 16″/406mm or 18″/457mm. Other sizes on request. |
| PLC Control: | Touch Panel. |
Add-on Options
- Bag Top Trimmers
- Trim Removers 3" (76mm) or 5" (127mm)
- Automatic Infeed
- Bag Coders and Printers
- Conveyors
- Bag Fillers and Bag Loaders
