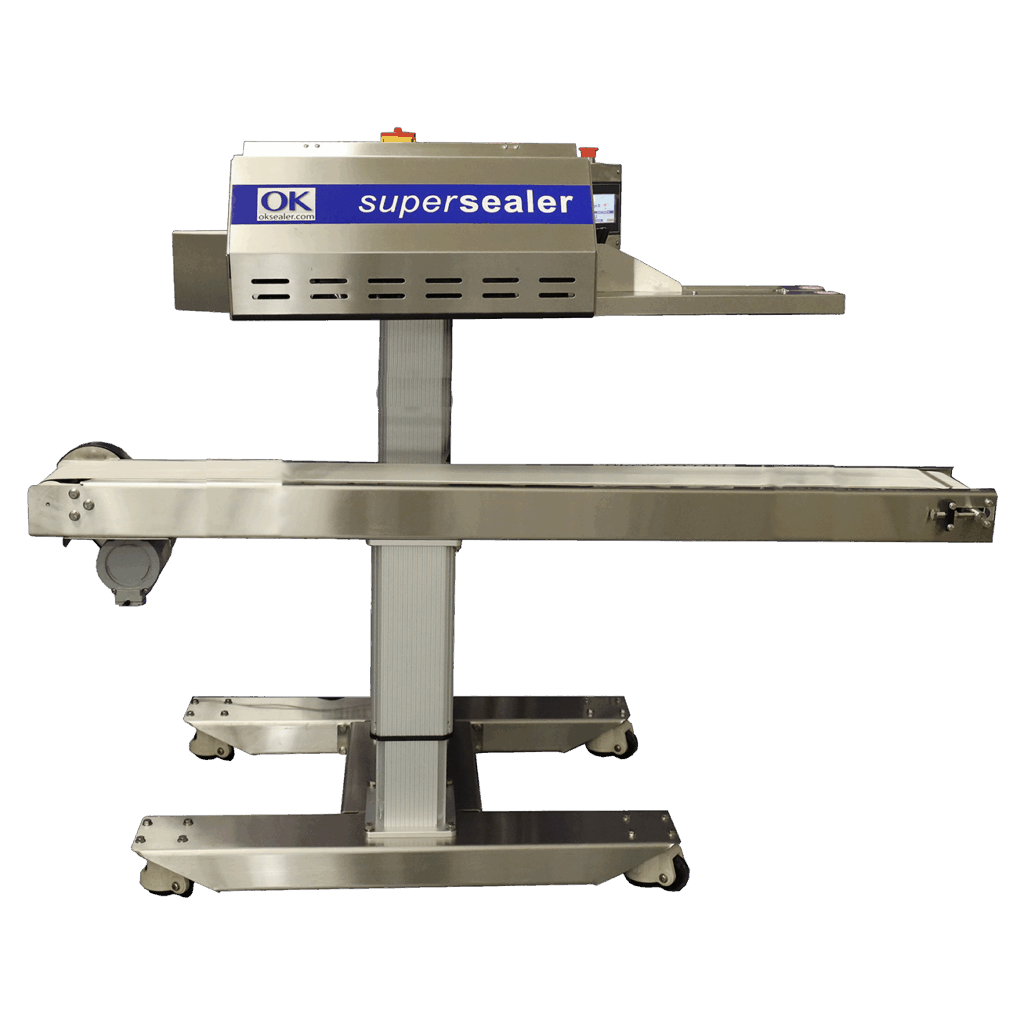

Supersealer SB20
The Supersealer SB20 Stainless Steel version utilizes teflon bands to continuously seal a wide range of bag materials at high speed and efficiency. With their proven band sealing technology and operator friendly controls ensures continuous duty performance in demanding applications.
The Supersealer comes with a motorized pedestal and a stainless-steel base with locking casters for an easy bag size changeover, which results in increasing productivity. With a touch of a button, you can change the height of the sealer, no manual labor required.
The sealer and conveyor slaves off the sealer drive, so both units are always synchronized.
Features | Benefits |
 No tool band change over: | Easy to maintain. |
| Variable Speed: | Ease of matching conveyor speeds and flexibility. |
| Closed Loop PID Temperature Control: | Accurate and consistent sealing temperature. |
| Stainless steel exterior finish. |
|
| Motorized Pedestal: | Adjust height with a touch of a button, simplifying multiple bag applications. |
TECHNICAL SPECIFICATIONS | |
| Bag Size Range: | All Bag Sizes. |
| Bag Materials: | Heat Sealable up to 12 mils. |
| Speed: | Up to 48 fpm. |
| Machine Handing: | Right to Left or Left to Right. |
| Electric Requirements: | 110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp CE Marked. |
| Pneumatic: | Not required on standard configuration Required for optional Jet Flow Trim Remover. |
Add-on Options
- Bag Top Trimmers
- Trim Removers 3" (76mm) or 5" (127mm)
- Automatic Infeed
- Bag Coders and Printers
- Conveyors
- Bag Fillers and Bag Loaders
- Washdown (IP65 or IP69K) and Corrosive Washdown
- Dedusters for difficult dusty environments
- SB30 Explosion Proof - To be determined with project
