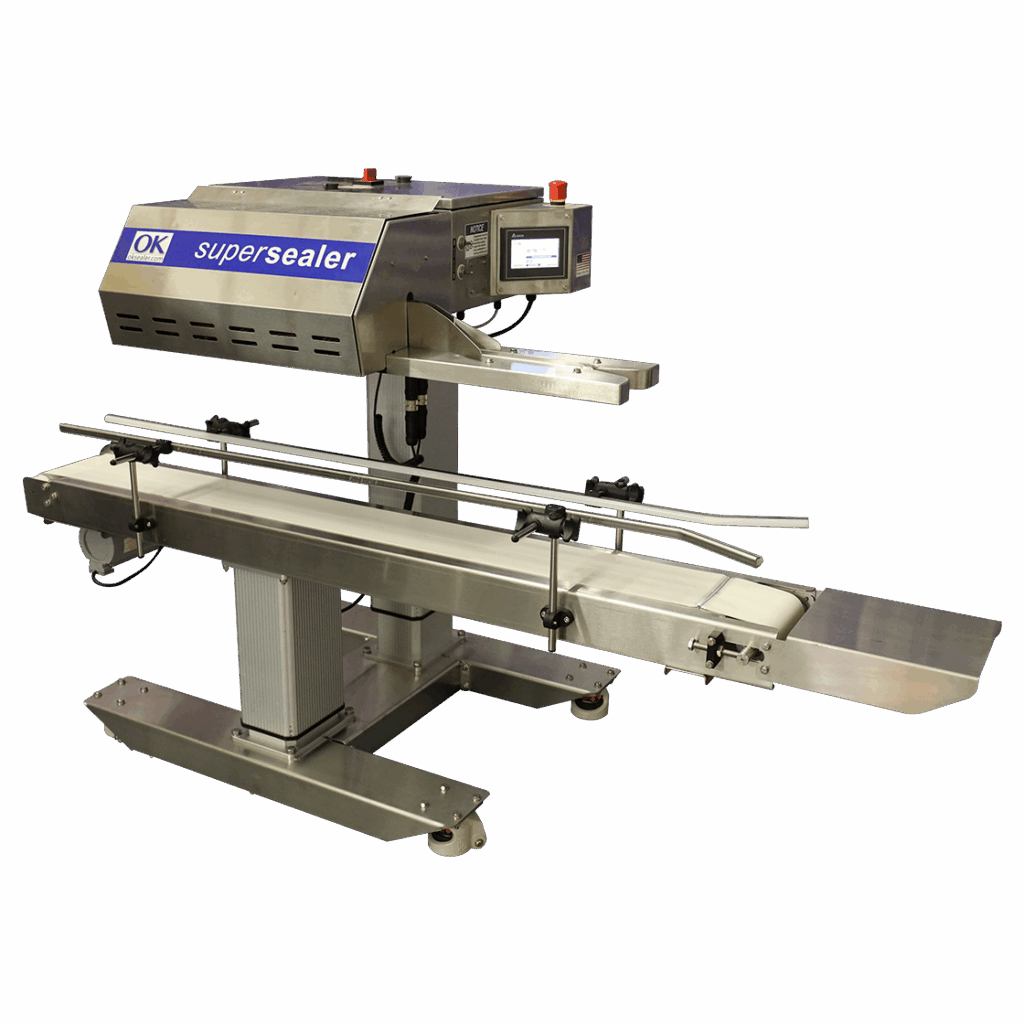

Supersealer SB20 Washdown
The Supersealer SB20WD is available in IP65 and IP69K rated washdown bag sealers. An IP65 rating sealer can be washed down using only a garden hose pressure. Our IP69K sealer or system can handle the demands of aggressive washdown.
Our washdown bag sealers are ideal solutions for clean-room packaging environments and packagers that require strict cleaning standards. Our stainless steel, IP65 and IP69K rated bag sealers are trusted worldwide by seafood, chicken, meat, produce, pharmaceutical, chemical, agricultural, and other manufacturers that require frequent cleaning of their packaging equipment.
Sanitation of plants is the new normal and we have the sealer to meet the demands companies require.
Features | Benefits |
 No tool band change over: | Easy to maintain. |
| Variable Speed: | Ease of matching conveyor speeds and flexibility. |
| Closed Loop PID Temperature Control: | Accurate and consistent sealing temperature. |
| Stainless steel exterior finish. | Clean & durable finish, preffered in food and other industries. |
| Motorized Pedestal: | Adjust height with a touch of a button, simplifying multiple bag applications. |
| Ip65 or IP69k washdown unit: | Offers user with the choice of a simple or aggressive washdown for sanitization requirements. |
TECHNICAL SPECIFICATIONS | |
| Bag Size Range: | All Bag Sizes. |
| Bag Materials: | Heat Sealable up to 12 mils. |
| Speed: | Up to 48 fpm. |
| Machine Handing: | Right to Left or Left to Right. |
| Electric Requirements: | 110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp CE Marked. |
| Pneumatic: | Not required on standard configuration Required for optional Jet Flow Trim Remover. |
Add-on Options
- Bag Top Trimmers
- Trim Removers 3" (76mm) or 5" (127mm)
- Automatic Infeed
- Bag Coders and Printers
- Conveyors
- Bag Fillers and Bag Loaders
- Dedusters for difficult dusty environments
- SB30 Explosion Proof - To be determined with project
