Supersealer SB30 HD Band Sealer

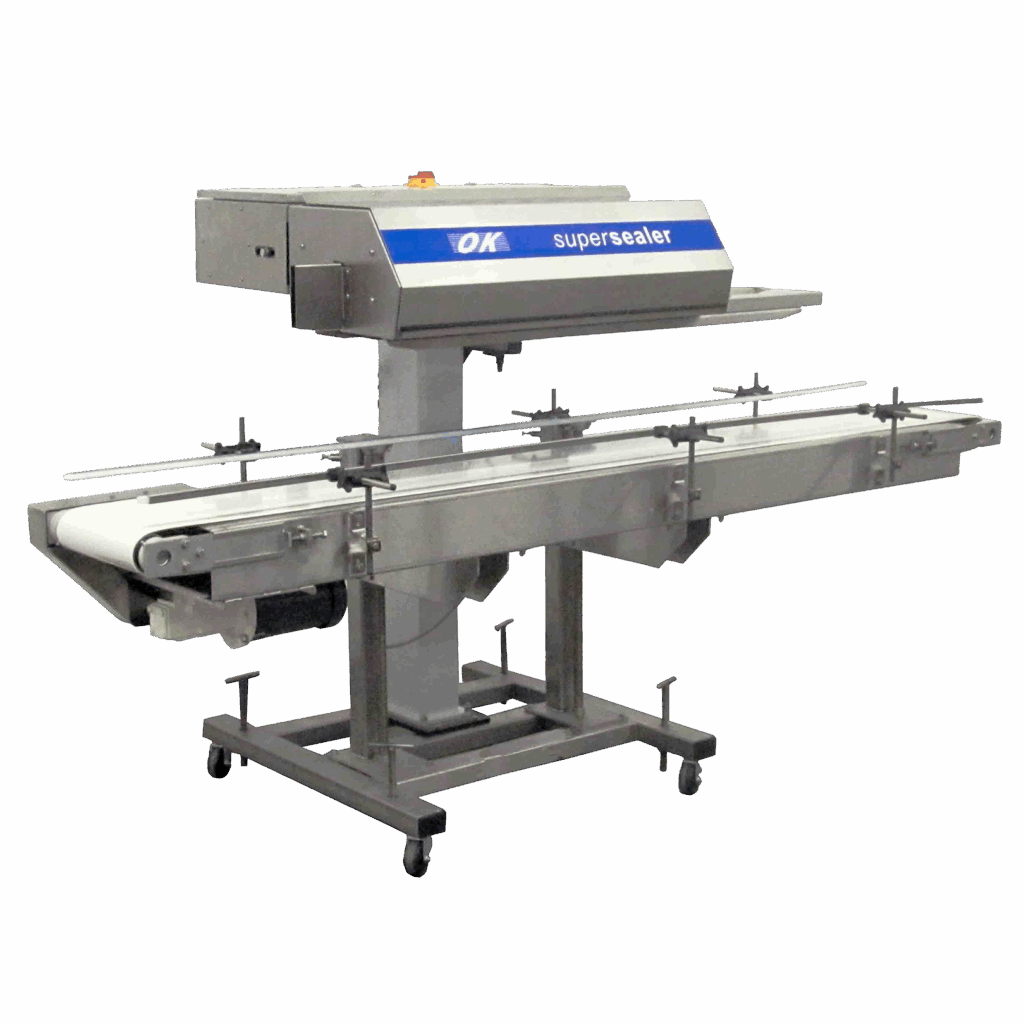

Supersealer SB30 Heavy Duty Band Sealer - Stainless Steel Version
The Supersealer SB30, our heavy duty high speed sealer, utilizes teflon bands to continuously seal a wide range of bag materials at high speed and efficiency. The 316 stainless steel construction in combination with proven band sealing technology and operator friendly controls ensures continuous duty performance in demanding applications.
The Supersealer SB30 deliver added sealing power or high-speed output. Common applications are products of any weight that use a gusseted bag, thicker films or high-speed production. Common industries are poultry, meat, fish, animal feed, fertilizer and mulch, soil and stones.
Features | Benefits |
 No tool band change over: | Easy to maintain. |
| Heavy Duty Band Sealing Technology: | Unique visually automatic band tensioning system. |
| Variable Speed: | Ease of matching conveyor speeds and flexibility. |
| Closed Loop PID Temperature Control: | Accurate and consistent sealing temperature. |
| Easy Lift Front Cover: | On-top access to all components means faster maintenance. |
| Stainless steel exterior finish: | Clean & durable finish, preffered in food and other industries. |
| Motorized Pedestal & Mobile Base: | Adjust height with a touch of a button, simplifying multiple bag applications. Base is on casters for mobility. |
TECHNICAL SPECIFICATIONS | |
| Bag Size Range: | All Bag Sizes. |
| Bag Materials: | Heat Sealable up to 12 mils. |
| Speed: | Up to 70 feet/min or 30 meters/min. Other speeds available upon request. |
| Machine Handing: | Right to Left or Left to Right. |
| Seal Width: | 1/2″ wide or 11mm. Optional 3/4″ wide. |
| Electric Requirements: | 110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp CE Marked. |
| Pneumatic: | Not required on standard configuration Required for optional Jet Flow Trim Remover. |
Add-on Options
- Bag Top Trimmers
- Trim Removers 3" (76mm) or 5" (127mm)
- Automatic Infeed
- Bag Coders and Printers
- Conveyors
- Bag Fillers and Bag Loaders
- Washdown (IP65 or IP69K) and Corrosive Washdown
- Dedusters for difficult dusty environments
- SB30 Explosion Proof - To be determined with project
