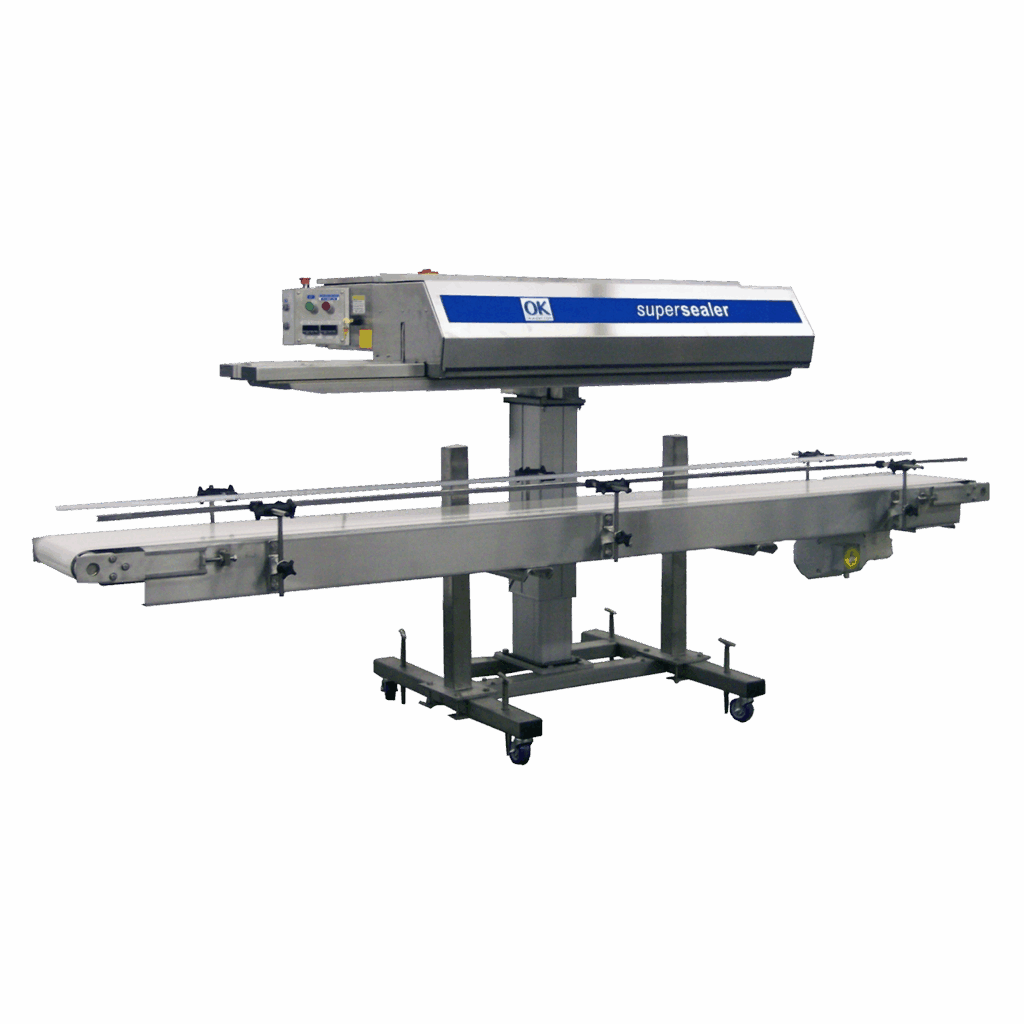

Supersealer SB40 Band Sealer
The Supersealer SB40 Rotary Band Sealer continuously seals a wide range of bag materials at a high speed and efficiency.
The sealer, is a high-quality band sealer that has four heating capsules, creating more heat to seal the bags . The machine will run up to 70 fpm and will seal materials up to 15 mils. Other outstanding sealer features include tool-less band changing, single point heating and cooling bar adjustment, thermally isolated heat bars, and digital temperature controls. The Supersealer comes with a motorized pedestal and a stainless-steel base with locking casters for an easy bag size changeover, which results in increasing productivity. With a touch of a button, you can change the height of the sealer, no manual labor is required.
The sealer and conveyor slaves off the sealer drive, so both units are always synchronized.
Features | Benefits |
 No tool band change over: | Easy to maintain. |
| Heavy Duty Band Sealing Technology: | Unique visually automatic band tensioning system. |
| Variable Speed: | Ease of matching conveyor speeds and flexibility. |
| Closed Loop PID Temperature Control: | Accurate and consistent sealing temperature. |
| Easy Lift Front Cover: | On-top access to all components means faster maintenance. |
| Stainless steel exterior finish: | Clean & durable finish, preffered in food and other industries. |
| Motorized Pedestal & Mobile Base: | Adjust height with a touch of a button, simplifying multiple bag applications. Base is on casters for mobility. |
TECHNICAL SPECIFICATIONS | |
| Bag Size Range: | All Bag Sizes. |
| Bag Materials: | Heat Sealable up to 12 mils. |
| Speed: | Up to 70 feet/min or 30 meters/min. Other speeds available upon request. |
| Machine Handing: | Right to Left or Left to Right. |
| Seal Width: | 1/2″ wide or 11mm. Optional 3/4″ wide. |
| Electric Requirements: | 110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp CE Marked. |
| Pneumatic: | Clean dry air required. |
Add-on Options
- Bag Top Trimmers
- Trim Removers 3" (76mm) or 5" (127mm)
- Automatic Infeed
- Bag Coders and Printers
- Conveyors
- Bag Fillers and Bag Loaders
- Washdown (IP65 or IP69K) and Corrosive Washdown
- Dedusters for difficult dusty environments
- SB30 Explosion Proof to be determined by project.
