Supersealer SS4 - High Capasity

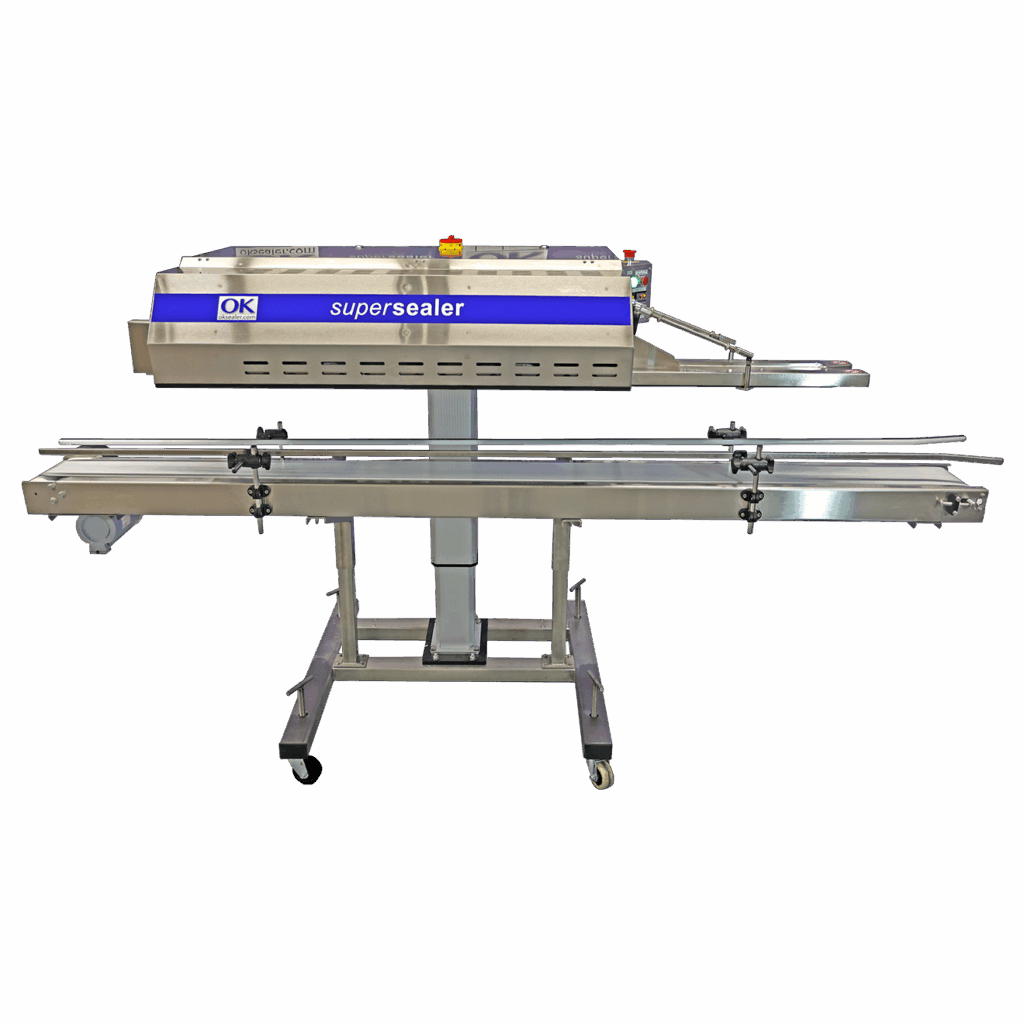

Supersealer SS4 High Capacity Hot air Sealer
The Supersealer SS4, Stainless Steel High Capacity Hot Air Sealer, is designed to operate in tough industrial applications and demanding environments. With years of field experience and customer input, the SS4 sealing machine is supplied to provide superior bag sealing efficiency and reliability.
Its 316 stainless steel finish, heavy-duty construction, motorized and increased heat capacity enables sustainable high-speed output for thicker bags. With it’s 8 heaters, it will seal material up to 40 mils or 1000 microns and run a speed up to 120 fpm. The sealer provides consistent worry-free long-term reliability for a wide range of tough sealing products.
Features |
Benefits |
 Hot Air Sealing Technology |
Optimum seal quality at low maintenance |
| Variable Speed |
Ease of matching conveyor speeds and flexibility |
| Closed Loop PID Temperature Control |
Accurate and consistent sealing temperature |
| Motorized Pedestal |
With a touch of a button, for height adjustments, simplifying multiple bag applications |
| Stainless steel exterior finish. |
Clean & durable finish, preferred in food and other industries. |
TECHNICAL SPECIFICATIONS |
|
| Bag Size Range: | All Bag Sizes. |
| Bag Materials: | Heat Sealable up to 10 mils. |
| Speed: | Up to 80 fpm. Other speeds available upon request. |
| Seal Wheels: | 1/4” or 6mm standard. Optional 3/8” or 9mm. |
| Machine Handing: | Right to Left or Left to Right. |
| Electric Requirements: | 110 VAC, 1 PH, 60 Hz, 10 Amp 220 VAC, 1 PH, 50 Hz, 7 Amp. |
| Pneumatic: | Not Required on standard configuration Required for optional Jet Flow Trim Remover. |
Add-on Options
- Bag Top Trimmers
- Trim Removers 3" (76mm) or 5" (127mm)
- Automatic Infeed
- Bag Coders and Printers
- Conveyors
- Bag Fillers and Bag Loaders
- Corrosive Washdown
- Dedusters for difficult dusty environments
